  3. SHM90-TD19

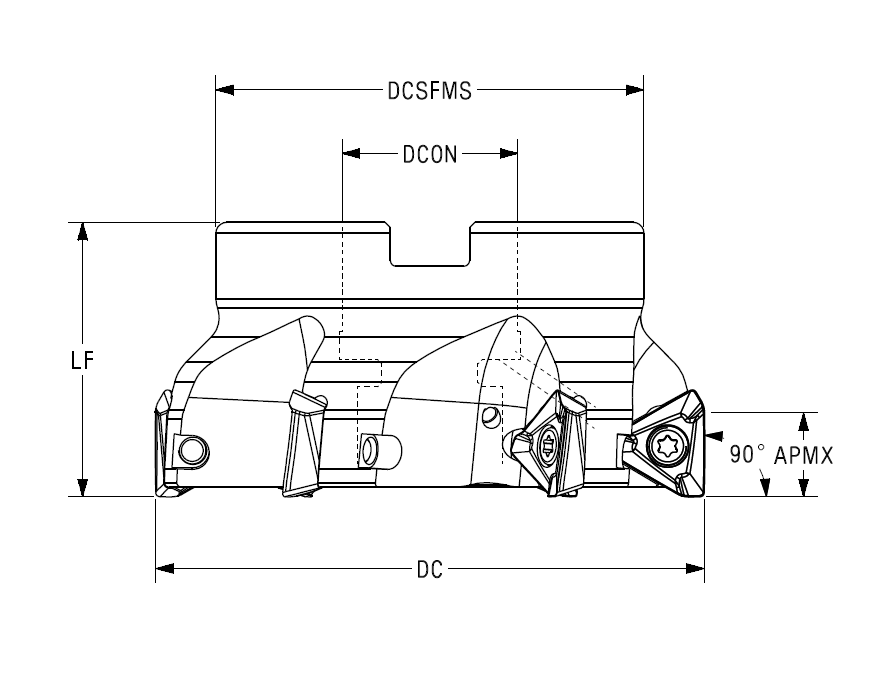

Picture of SHM90-TD19
Picture of SHM90-TD19 Picture of SHM90-TD19

SHM90-TD19

Code: SHM90-TD19160Q40Z10
€1115,79
Products specifications
Name Description Value
Nr. Item number F12179
DC Cutting diameter 160.00mm
CICT Cutting item count 10
LF Functional lenght 63.00mm
DCON Connection diameter 40.00mm
DCSFMS Contact surface diameter machine side 114.0mm
APMX Depth of cut maximum 15.0mm
RMPX Ramping angle maximum 0.5°
Shank type Shank type Arbor
CSP Coolant supply property 0
WT Weight of item 3.992kg
Insert Insert TDMT 1906
KAPR Tool cutting edge angle 90°
TQ Tightening torque 5.0Nm
