  1. /
  2. Helical milling /
  3. RTMN R35 M
Picture of RTMN R35 M
Picture of RTMN R35 M Picture of RTMN R35 M

RTMN R35 M

Code: RTMN015/3M8R35C
€196,86

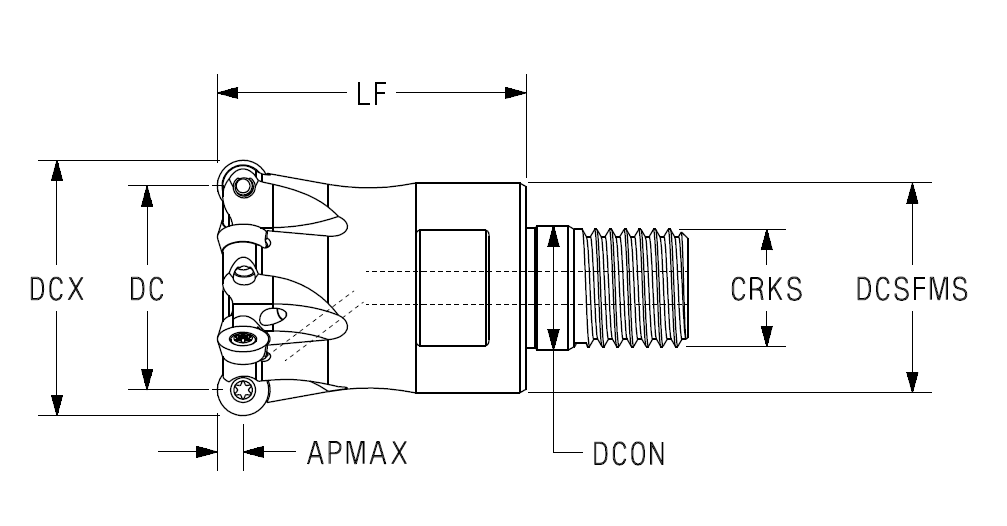

Products specifications
Name Description Value
Nr. Item number F12785
DC Cutting diameter 8.00mm
DCX Cutting diameter maximum 15.00mm
CICT Cutting item count 3
LF Functional lenght 23.00mm
DCON Connection diameter 8.50mm
DCSFMS Contact surface diameter machine side 12.7mm
CRKS Connection retention knob thread size M8
APMX Depth of cut maximum 3.5mm
RMPX Ramping angle maximum 2.3°
Shank type Shank type Modular
CSP Coolant supply property 1
WT Weight of item 0.020kg
Insert Insert RD.. 0702
KAPR Tool cutting edge angle RND
TQ Tightening torque 1.2Nm
